Hydraulic Self Close Concealed Door Hinge, Satin Chrome (Silver) Specifications

Type

Hardware

Manufacturer

SARTODOORS

Material

Zinc

Color

Silver

Hydraulic Self Close Concealed Door Hinge, Satin Chrome (Silver) Instructions

(2.47 MB)

Hydraulic Self Close Concealed Door Hinge, Satin Chrome (Silver) FAQ

When will I receive my door?

Can I change or cancel my order after purchase?

What should I do if my order arrives damaged?

What’s included with my door?

Is this door suitable for a bathroom?

Do you offer installation or measurement services?

Can I order a custom size?

Is there a warranty?

Can I return my door if it doesn’t fit?

What if some parts are missing from my order?

Where are United Porte doors made?

How should I care for my door?

How do I choose the correct door opening direction?

Can I buy just the door slab without the frame?

Are your doors displayed in showrooms?

Can I order extra hardware or trims?

How can I track my order?

Hydraulic Self Close Concealed Door Hinge, Satin Chrome (Silver) Reviews

Hydraulic Self Close Concealed Door Hinge, Satin Chrome (Silver) Review

Write a review

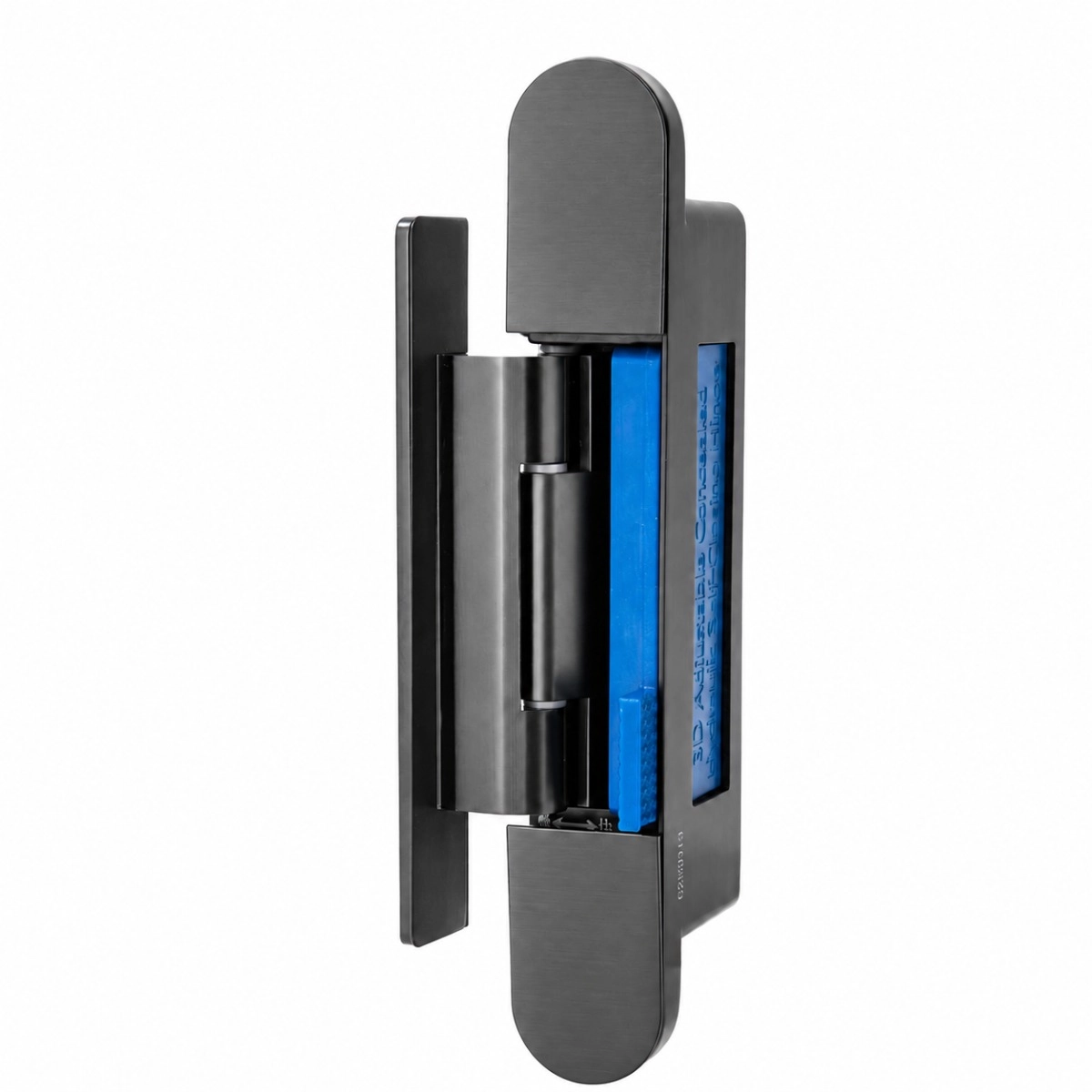

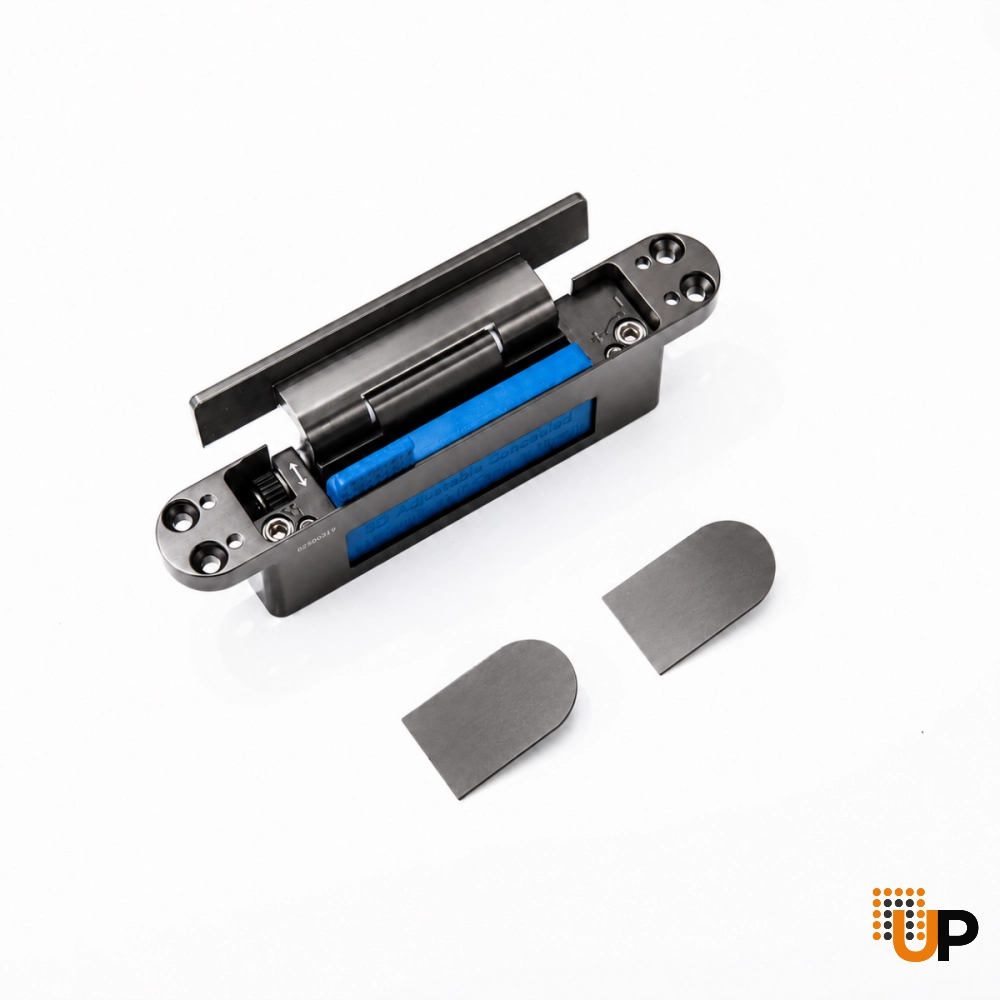

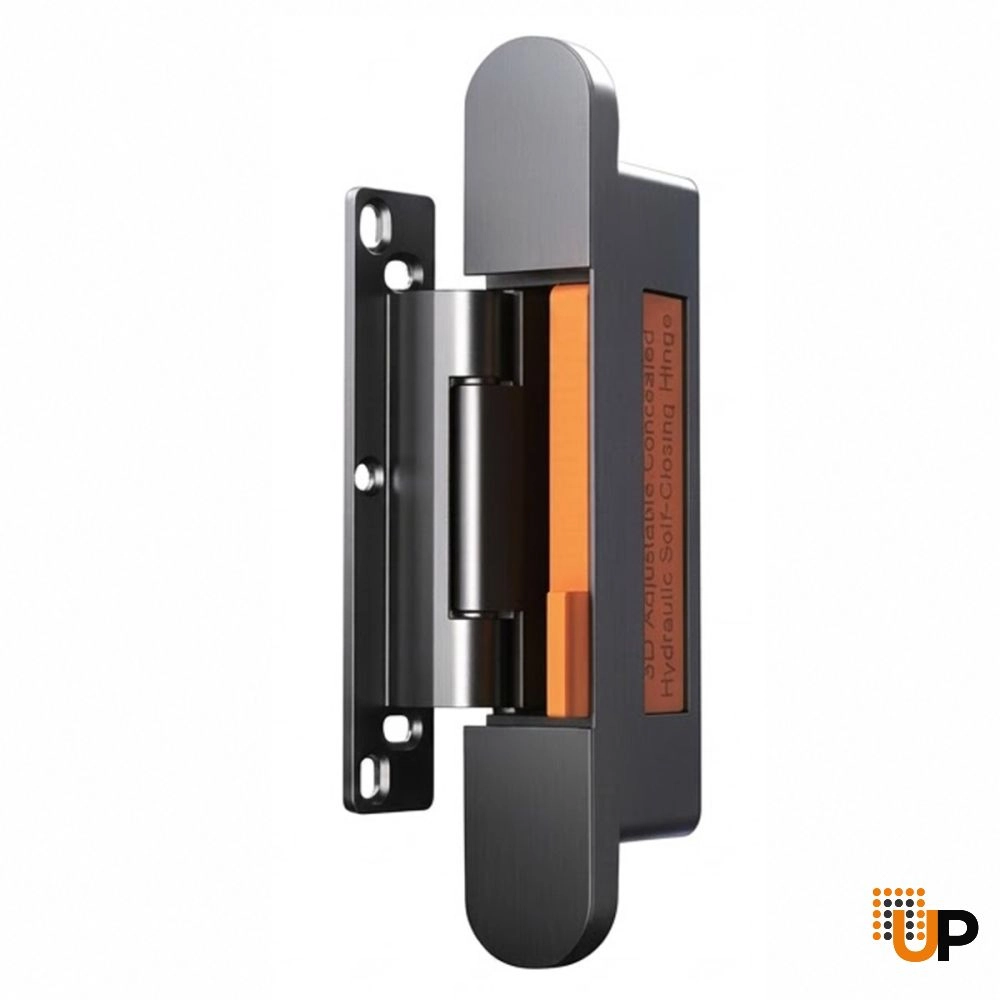

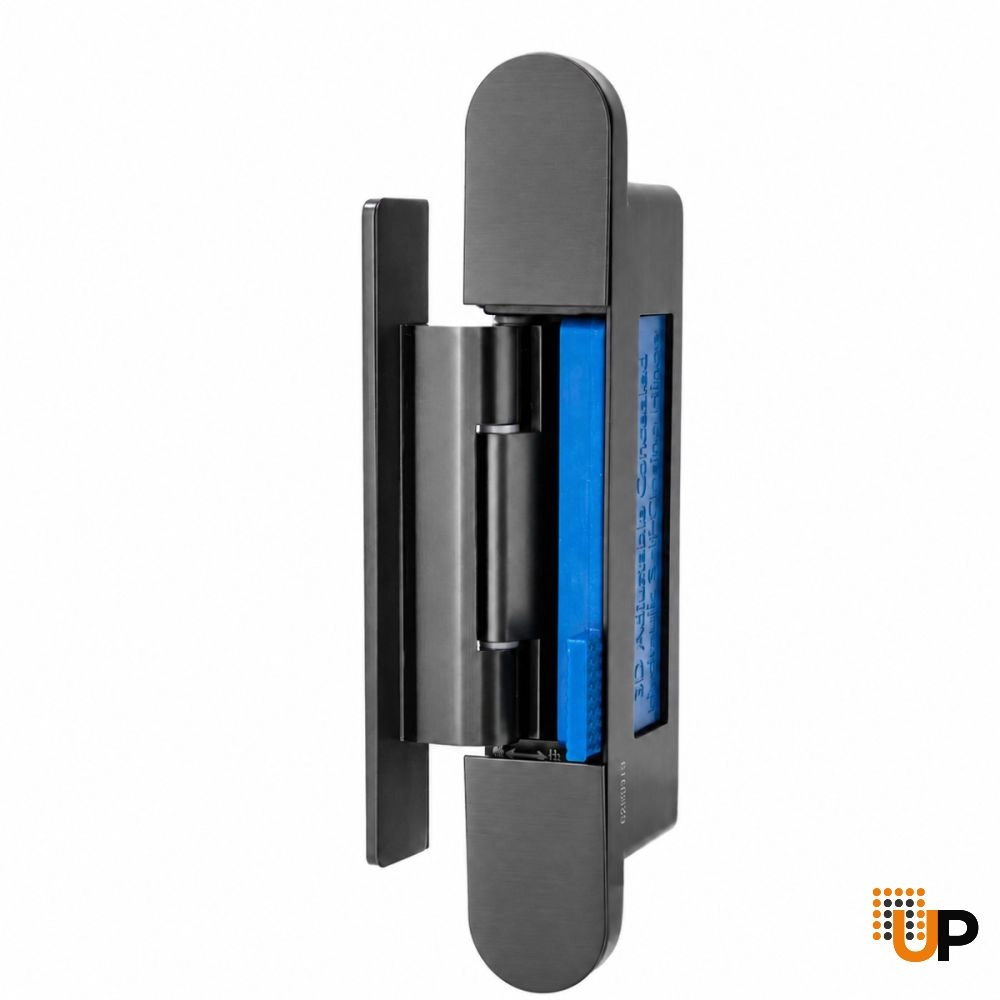

Hydraulic Self Close Concealed Door Hinge, Satin Chrome (Silver)

Copy full details
In stock
Price: $100
SARTODOORS
We are the official dealer of Sarto Doors
Choose Color
Silver
Hydraulic Self Close Concealed Door Hinge, Satin Chrome (Silver) Silver

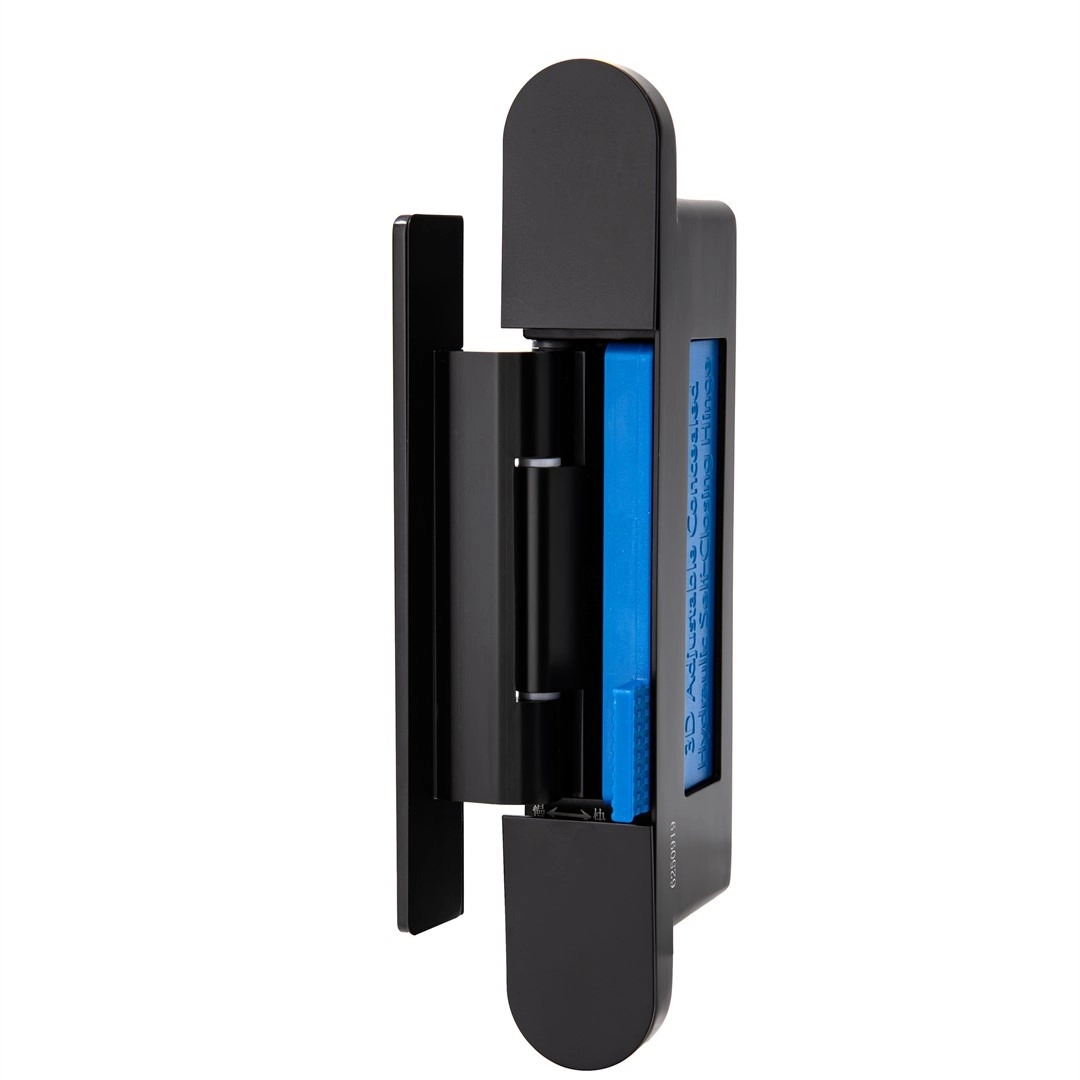

Hydraulic Self Close Concealed Door Hinge, Satin Chrome (Silver) Black

Choose Options

Choose Services

Delivery Options

Delivery Service
See estimated delivery costs
Showroom Pick Up
View pickup locations

We accept

Hydraulic Self Close Concealed Door Hinge, Satin Chrome (Silver) Description

Material: Zinc Alloy & Aluminum
Suitable Door Thickness: 1⅜" – 2⅜" (35–60 mm)
Handing: Left & Right Universal
Installation Type: Mill Installation
3D Adjustment: Vertical ±0.08" / Depth ±0.04" / Horizontal ±0.12" (±2mm / ±1mm / ±3mm)
Applicable Door Types: Doors with rebate, Aluminum Frame Doors, Wooden Doors

Features
Ultra-narrow 1⅛" × ⅜" (28mm × 10mm) super-slim profile
Maintains a 5/32" (4mm) door edge margin for 1¾" (45mm) rebated doors
Shallow frame mortising protects the internal aluminum structure and ensures stronger frame integrity
Fully concealed design with seamless mill installation
Hydraulic buffering with integrated damping mechanism for smooth, controlled closing
3D adjustable for precise and effortless alignment
Adjustable damping rate for full control over closing speed

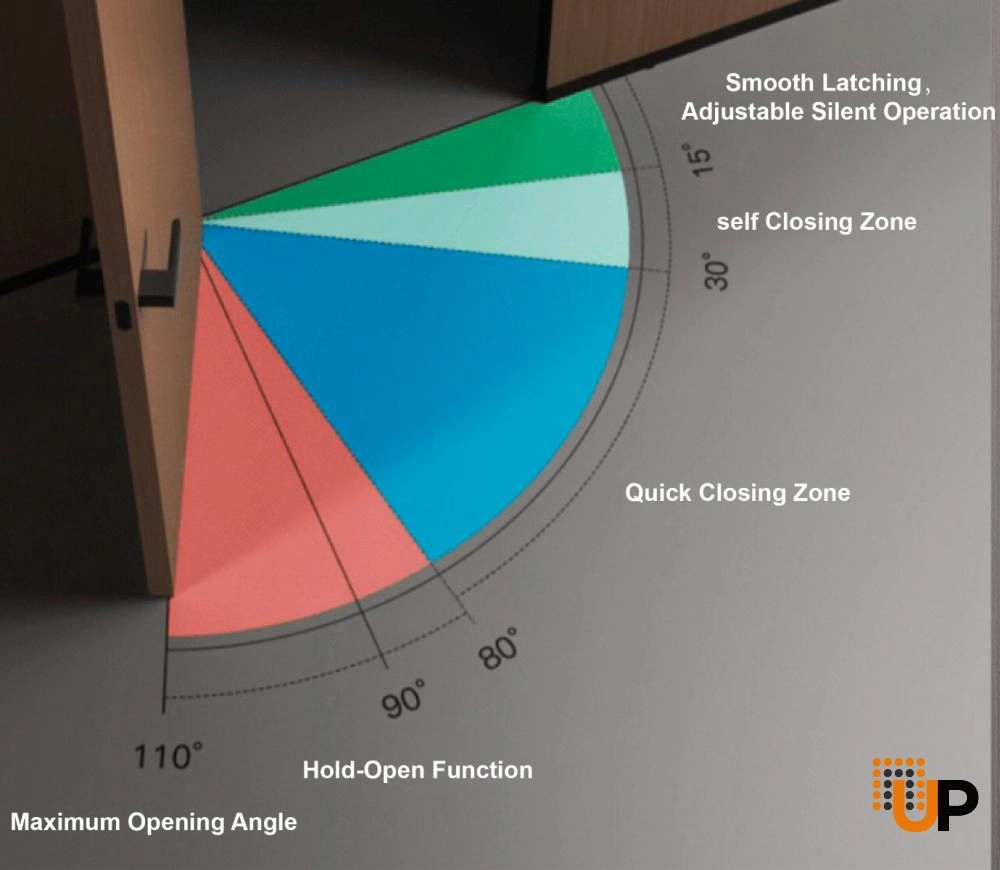

110° opening angle with automatic silent self-closing
High load capacity: 2 hinges support doors up to 154 lbs (70 kg)
