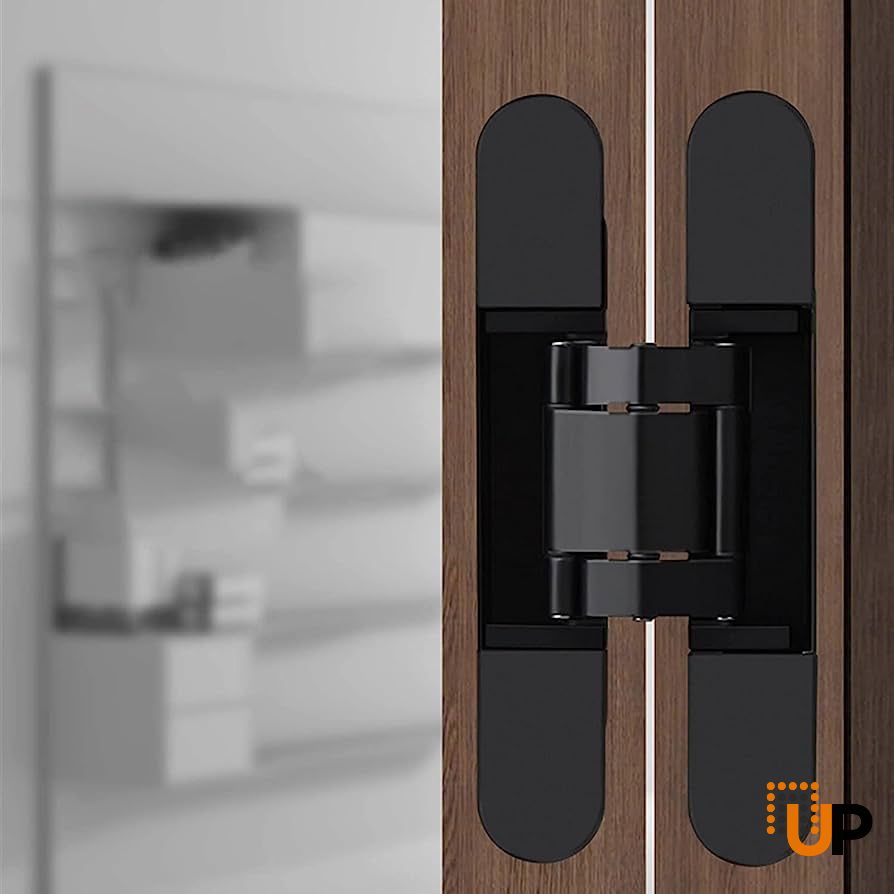

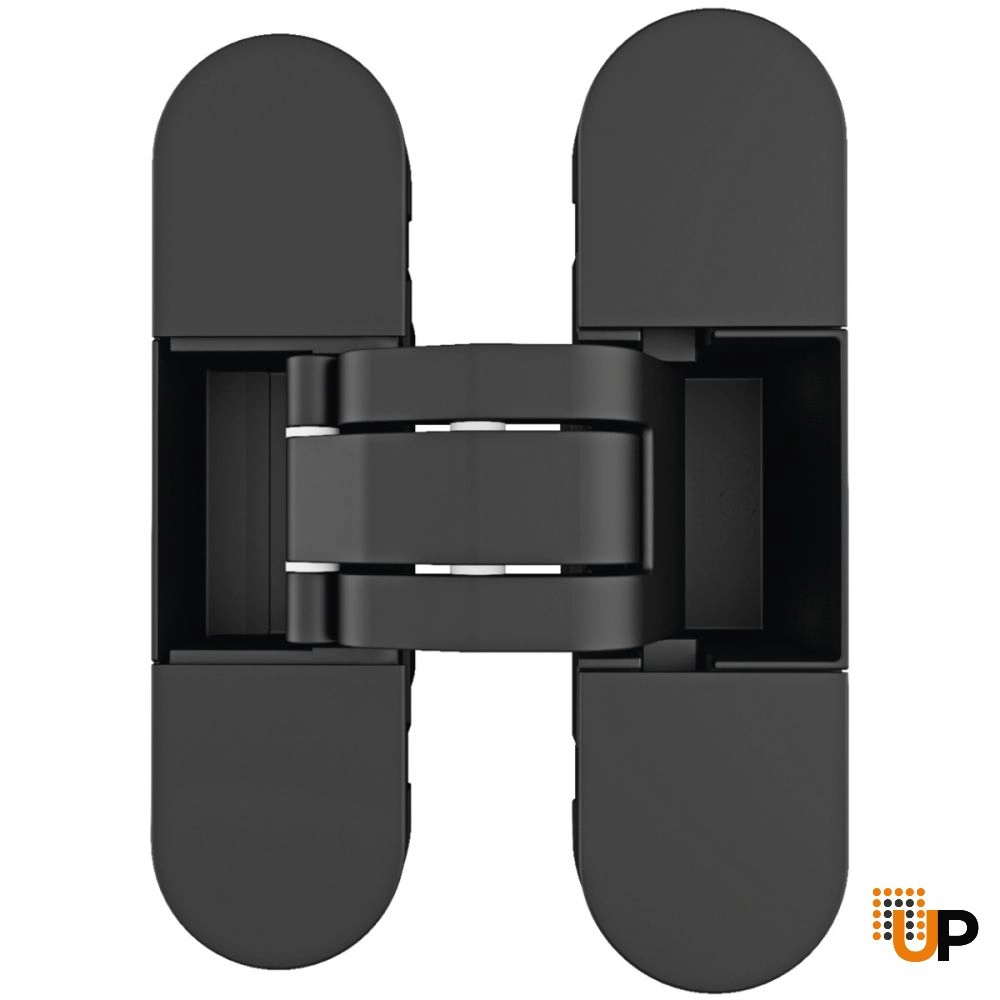

Introducing the AGB Concealed Hinges in a sleek black color, designed to elevate your door installations with style and functionality. These concealed hinges offer a reversible design and adjustable features on three axes, allowing you to achieve a perfect fit for flush doors with a thickness ranging from 40 mm (1 9/16") to 44 mm (1 3/4").
With a weight capacity of 40 kg using two hinges and 60 kg with three hinges, these hinges provide exceptional strength and stability for your doors. They ensure smooth operation and reliable performance, even for heavier doors.

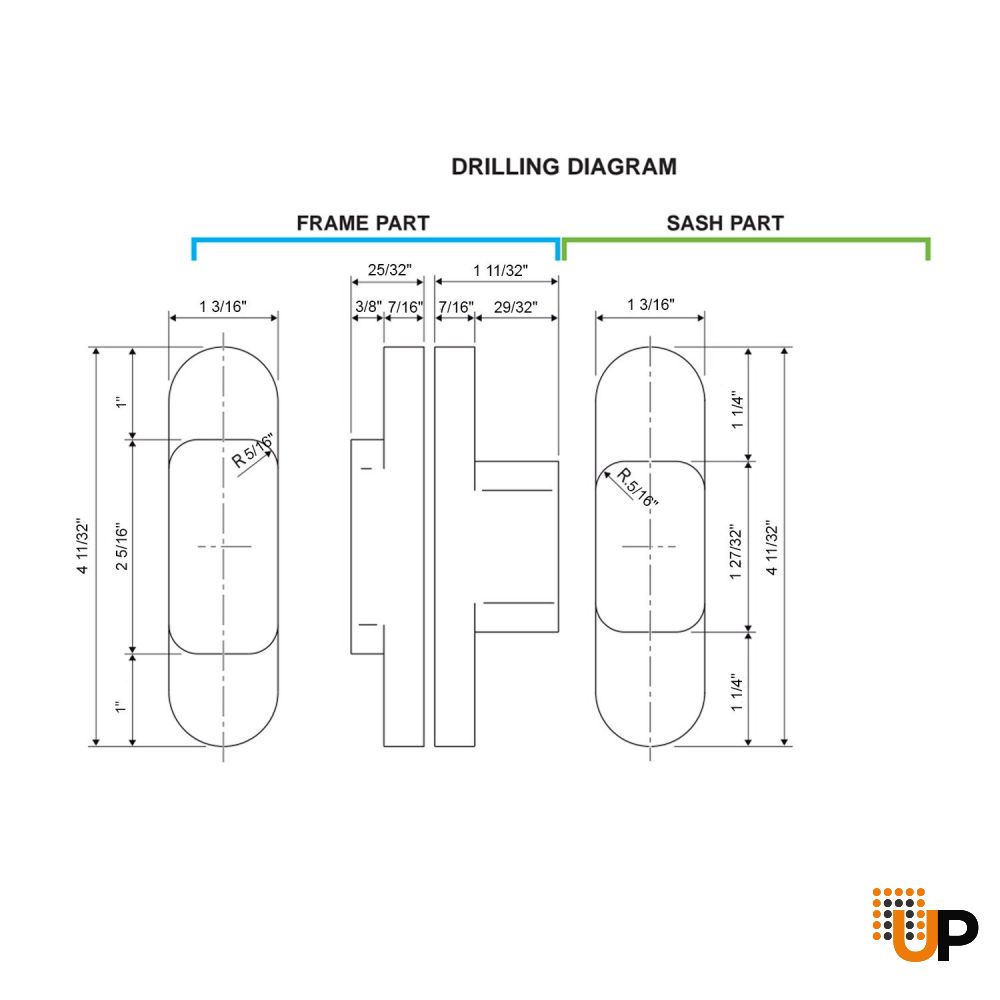

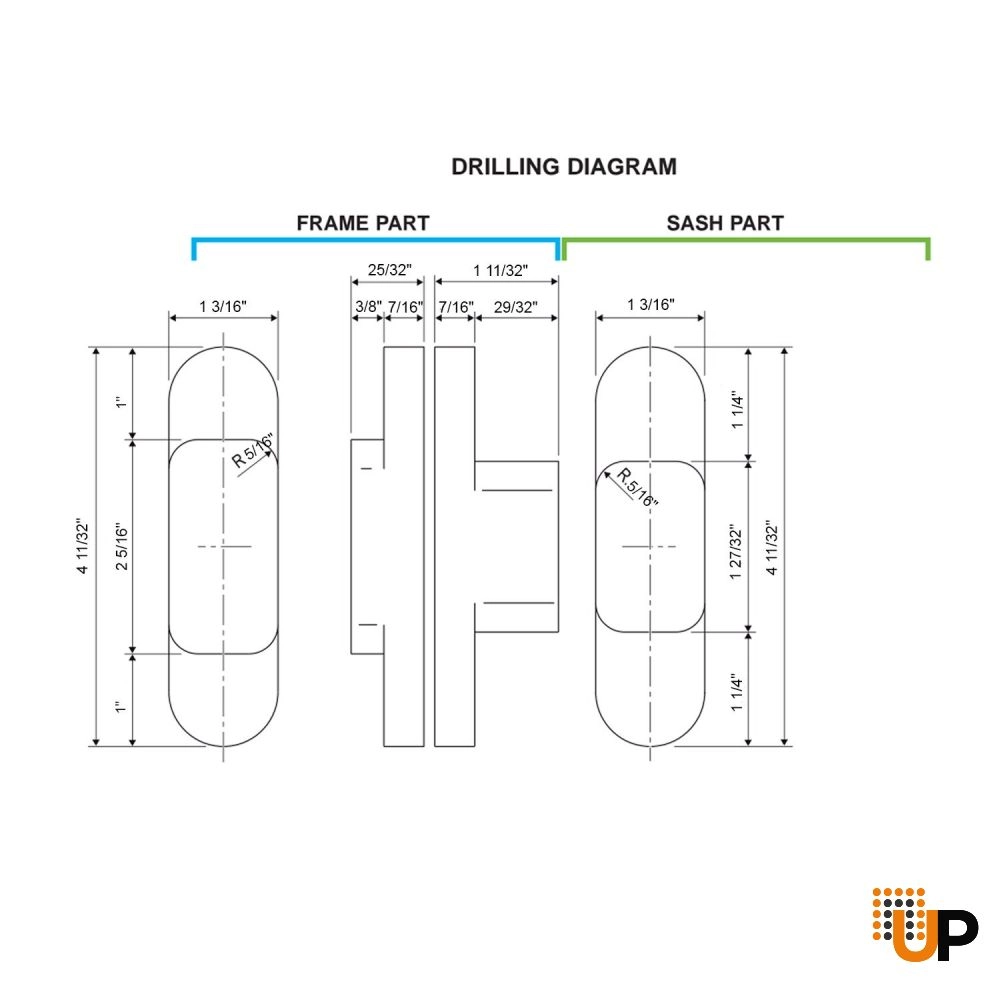

Installation is made effortless with the AGB Concealed Hinges. The package includes pre-drilled holes and detailed drilling diagrams for precise alignment. Set millings on both the sash and frame parts as indicated in the diagram. Fasten the hinges securely using 5x40 mm (3/16"x19/32") screws for the sash part and 4x25 mm (5/32"x1") screws for the frame part.

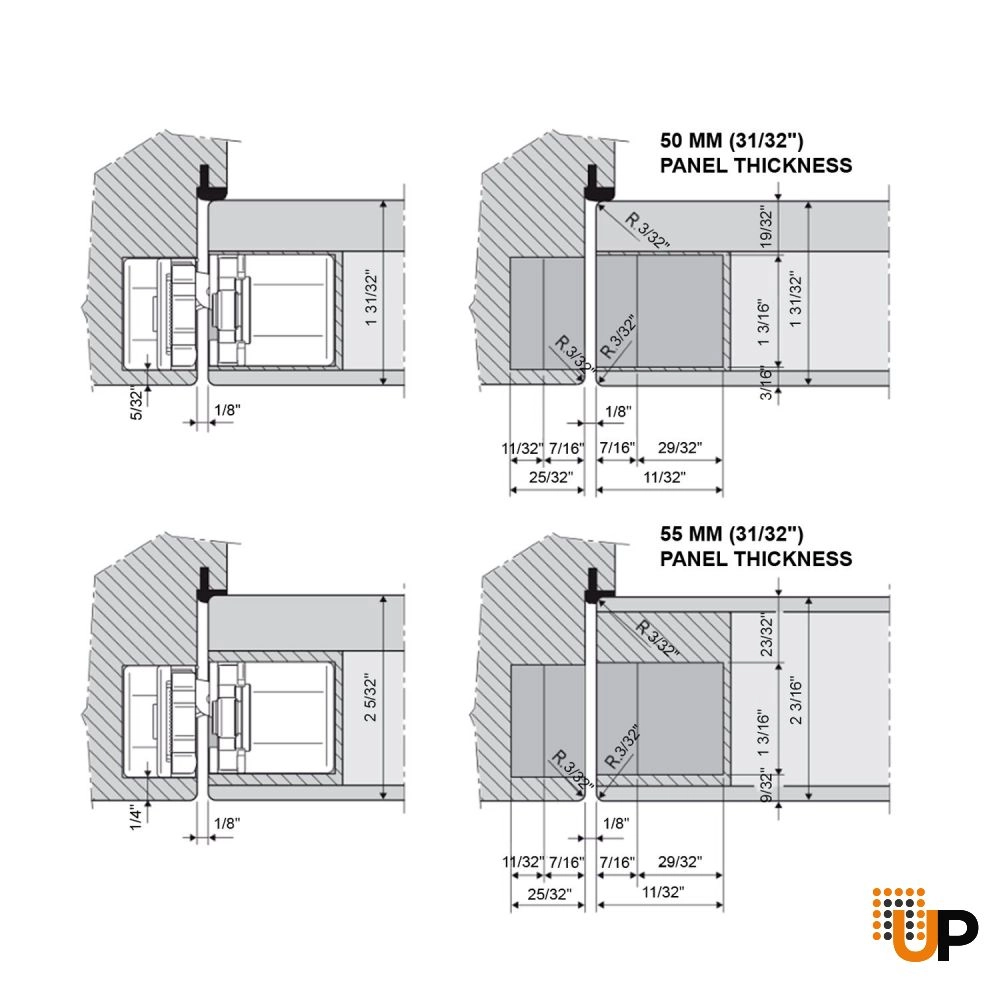

Designed to accommodate telescopic cover plates, these hinges offer a 20 mm (25/32") milling depth on the frame part. This feature ensures that the hinges remain invisible from the outside, providing a refined and seamless door design that enhances the overall aesthetic appeal.
Thanks to the symmetrical milling, these hinges enable door reversibility. This means that you can easily choose the door side on-site during installation, providing you with the flexibility to adapt to different configurations and preferences.
Enjoy hassle-free installation with the AGB Concealed Hinges. The sash part and frame part can be installed separately during production, allowing for convenient transportation and handling. They can then be easily joined on-site, saving you time and effort.
The covers of these hinges are designed to conceal the adjustment screws, ensuring an elegant and clean look, even when the sash is open. This feature adds a touch of sophistication to your doors, enhancing the overall visual appeal.
These concealed hinges offer three independent adjustments, allowing you to achieve precise alignment. The first adjustment allows for pressure adjustment with a range of ±1 mm (1/32"). The second adjustment enables vertical alignment with a range of ±2 mm (3/32"). The third adjustment provides horizontal alignment with a range of ±1.5 mm (1/16"). These independent adjustments ensure that your doors are perfectly aligned and operate smoothly.
In summary, the AGB Concealed Hinges in black color are the perfect choice for those seeking both style and functionality. With their reversible design, adjustable features, and easy installation process, these hinges provide the ultimate solution for flush doors. Elevate your doors to new heights with the elegance and performance of the AGB Concealed Hinges in black.
