Concealed hinge AGB Eclipse 2.0 Gold Interior Doors 1 Hinge

Introducing the AGB Concealed Hinges in a luxurious gold color, designed to add a touch of elegance and sophistication to your doors. These concealed hinges offer a reversible design and adjustable features on three axes, making them the perfect choice for flush doors with a thickness ranging from 40 mm (1 9/16") to 44 mm (1 3/4").

With a weight capacity of 40 kg using two hinges and 60 kg with three hinges, these hinges ensure exceptional strength and stability, supporting both standard and heavier doors with ease. Experience smooth and effortless door operation.

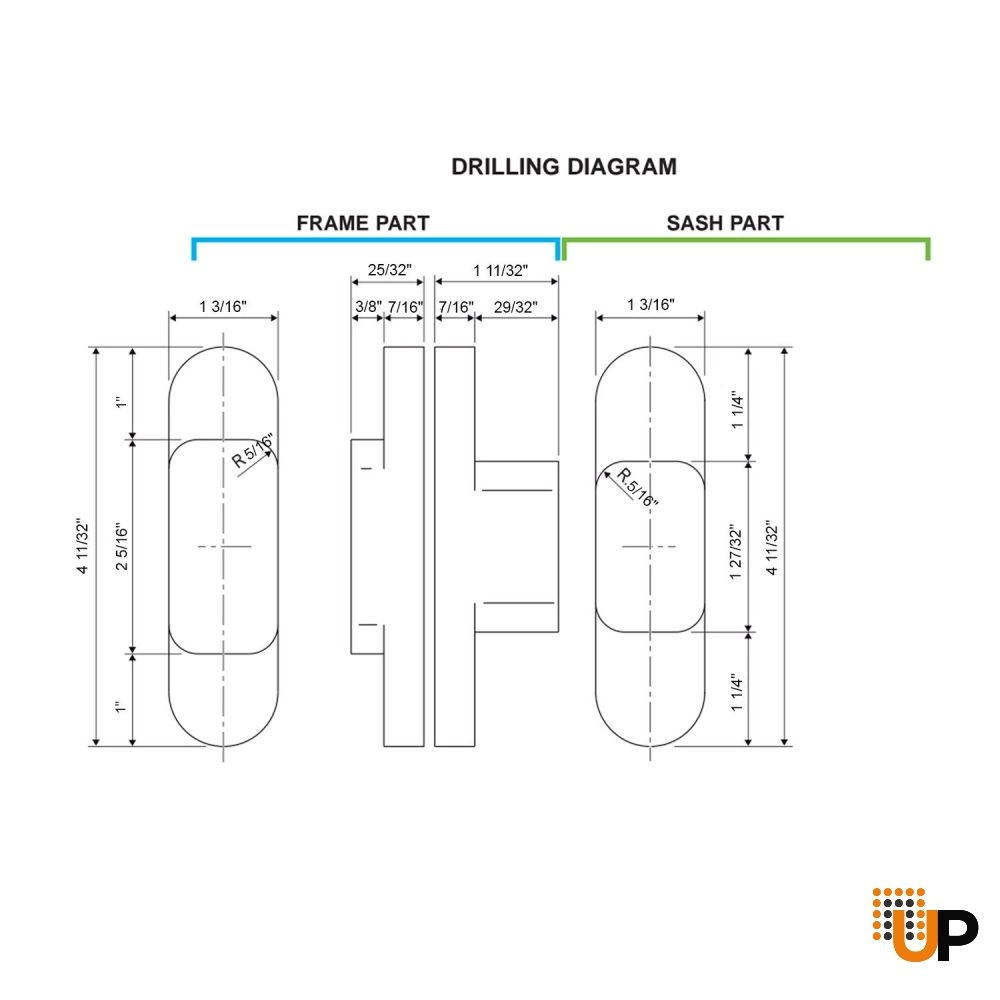

Installing the AGB Concealed Hinges is a breeze. Simply perform pre-drilling by following the provided instructions and use the drilling diagram to set millings on both the sash and frame parts. Securely fasten the hinges using 5x40 mm (3/16"x19/32") screws for the sash part and 4x25 mm (5/32"x1") screws for the frame part.

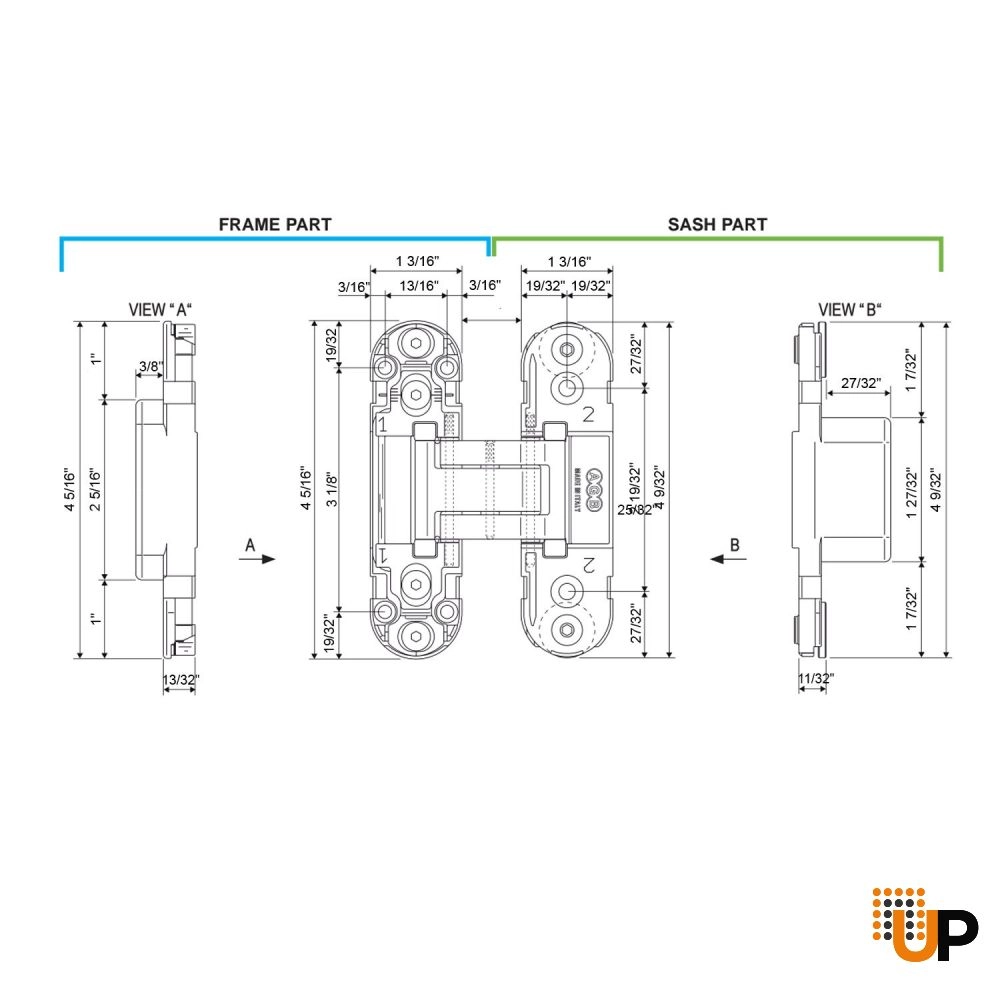

These hinges are designed to accommodate telescopic cover plates, with a frame part that allows for a 20 mm (25/32") milling depth. This feature ensures that the hinges remain invisible from the outside, providing a refined and seamless door design that exudes sophistication.

Thanks to their symmetrical milling, these hinges offer door reversibility, allowing you to make on-site choices regarding the door side during installation. This flexibility ensures that the hinges can adapt to various door configurations, meeting your specific preferences and needs.

Enjoy a hassle-free installation process with the AGB Concealed Hinges. The sash part and frame part can be installed separately during production, facilitating transportation and handling. They can then be easily joined on-site, saving you time and effort.

The covers of these hinges are designed to conceal the adjustment screws, ensuring an elegant and streamlined appearance, even when the sash is open. This attention to detail enhances the overall aesthetics of your doors, creating a refined and sophisticated look.

These concealed hinges offer three independent adjustments, enabling precise alignment. The first adjustment allows for pressure adjustment with a range of ±1 mm (1/32"). The second adjustment enables vertical alignment with a range of ±2 mm (3/32"). The third adjustment provides horizontal alignment with a range of ±1.5 mm (1/16"). These independent adjustments ensure that your doors are perfectly aligned and operate smoothly.

In summary, the AGB Concealed Hinges in gold color are the epitome of elegance and functionality. With their reversible design, adjustable features, and easy installation process, these hinges offer a seamless blend of style and performance. Elevate your doors with the luxurious gold finish of the AGB Concealed Hinges, creating a truly sophisticated and refined aesthetic.
