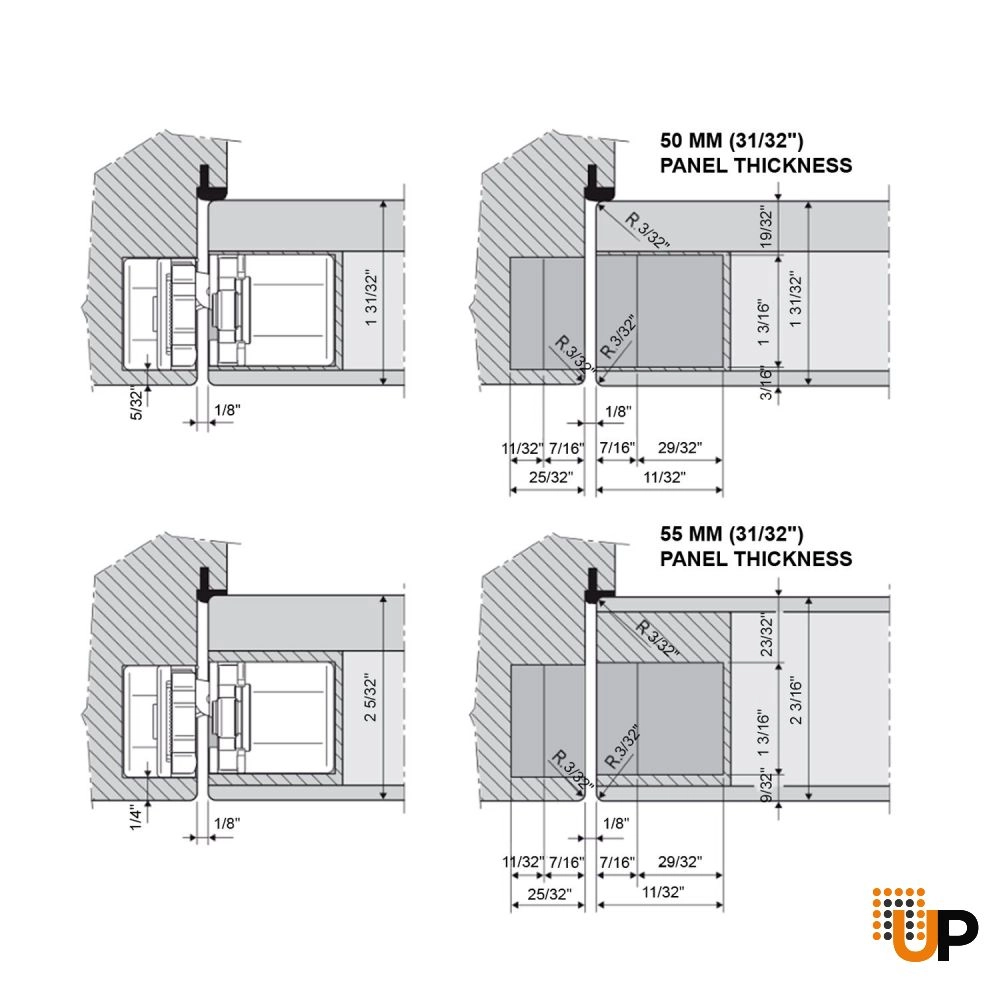

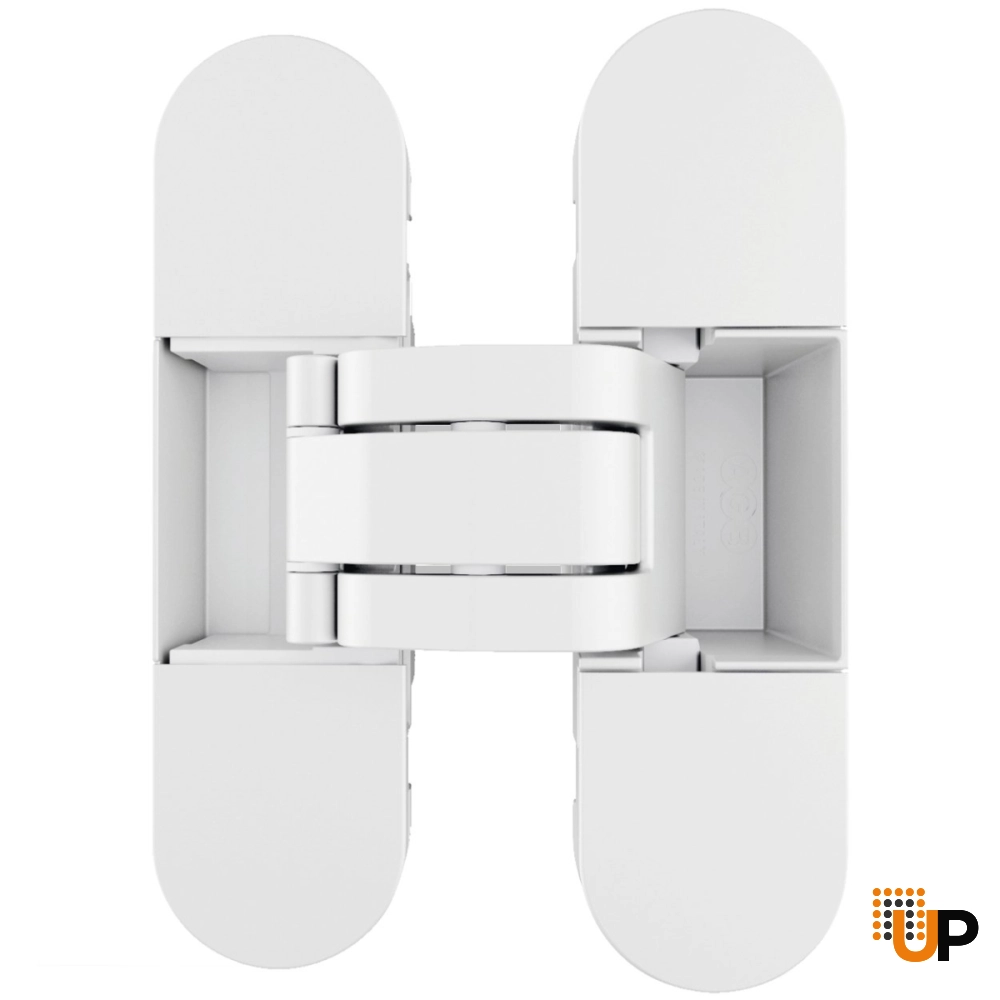

Introducing the AGB Concealed Hinges in a pristine white color, designed to bring a sense of purity and versatility to your door installations. These concealed hinges offer a reversible design and adjustable features on three axes, making them the perfect choice for flush doors with a thickness ranging from 40 mm (1 9/16") to 44 mm (1 3/4").
With a weight capacity of 40 kg using two hinges and 60 kg with three hinges, these hinges provide exceptional strength and stability, ensuring reliable performance for both standard and heavier doors.

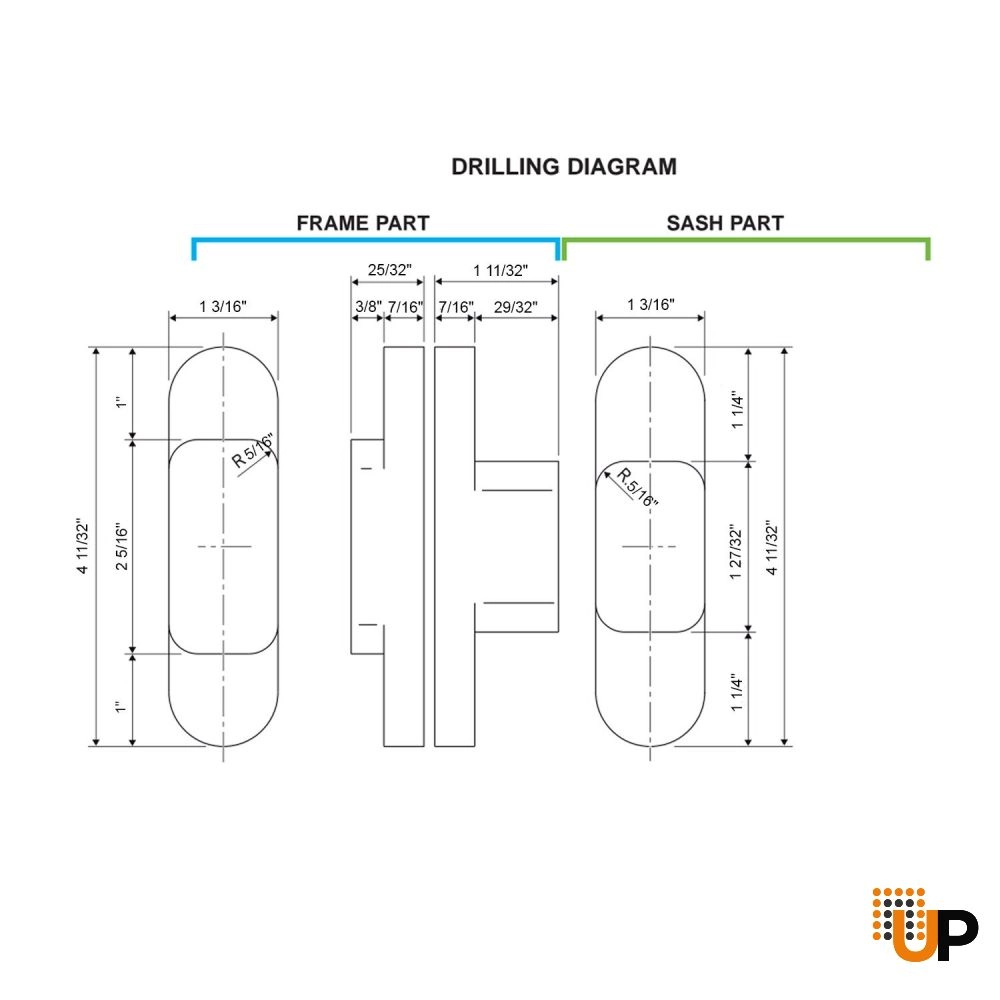

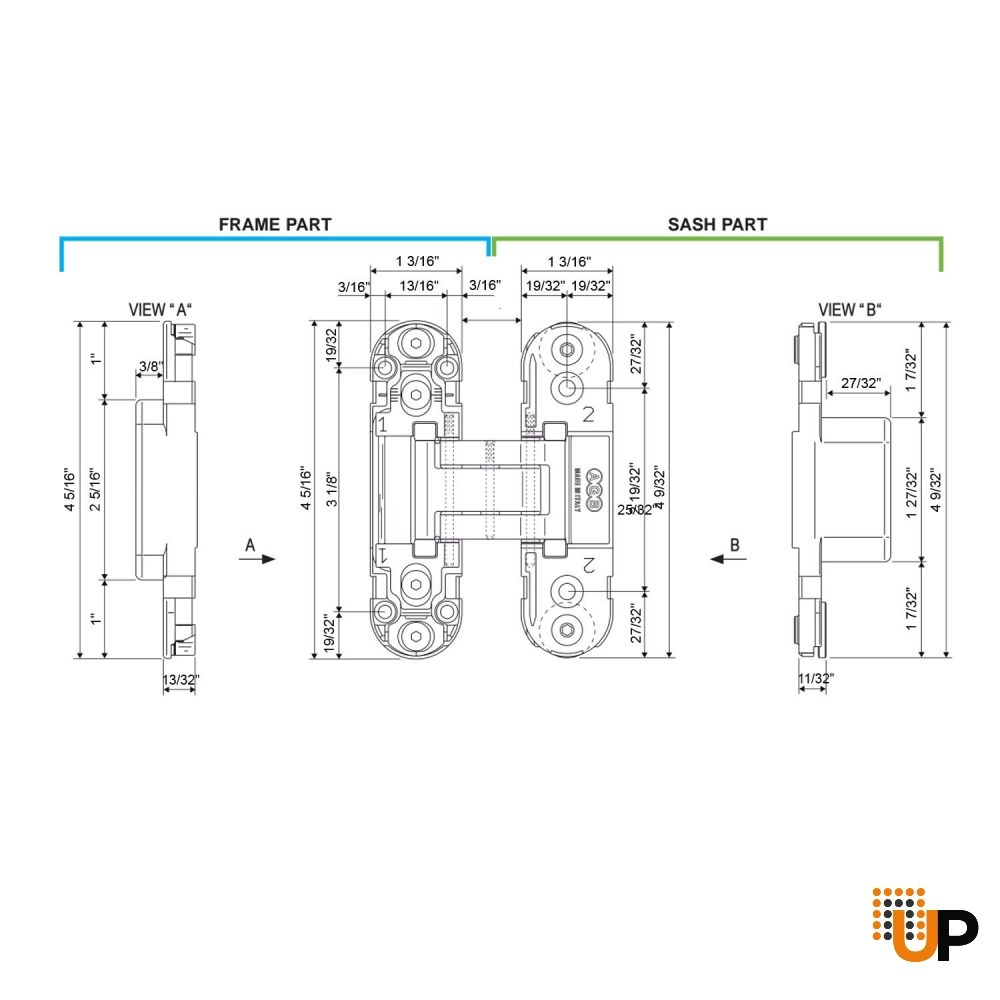

Installing the AGB Concealed Hinges is effortless. Perform pre-drilling as instructed and set millings on both the sash and frame parts according to the provided drilling diagram. Securely fasten the hinges using 5x40 mm (3/16"x19/32") screws for the sash part and 4x25 mm (5/32"x1") screws for the frame part.
These hinges are compatible with telescopic cover plates, featuring a frame part with a 20 mm (25/32") milling depth. This design ensures that the hinges remain invisible from the outside, adding a touch of refinement and elegance to your door design.
Thanks to their symmetrical milling, these hinges enable door reversibility, allowing you to make on-site choices regarding the door side during installation. This flexibility ensures that the hinges can adapt to different door configurations, offering versatility and convenience.
Experience easy installation with the AGB Concealed Hinges. The sash part and frame part can be installed separately during production, making transportation and handling a breeze. They can then be effortlessly joined on-site, saving you time and effort.
The covers of these hinges are designed to conceal the adjustment screws, ensuring an elegant and polished appearance, even when the sash is open. This attention to detail enhances the overall aesthetics of your doors, maintaining a clean and sophisticated look.
These concealed hinges offer three independent adjustments, allowing for precise alignment. The first adjustment enables pressure adjustment with a range of ±1 mm (1/32"). The second adjustment allows for vertical alignment with a range of ±2 mm (3/32"). The third adjustment provides horizontal alignment with a range of ±1.5 mm (1/16"). These independent adjustments ensure that your doors are perfectly aligned and operate smoothly.
In summary, the AGB Concealed Hinges in white color combine purity, versatility, and functionality. With their reversible design, adjustable features, and easy installation process, these hinges offer a seamless blend of style and performance. Elevate your doors with the timeless beauty of the AGB Concealed Hinges in white, creating a fresh and refined look for your living spaces.
